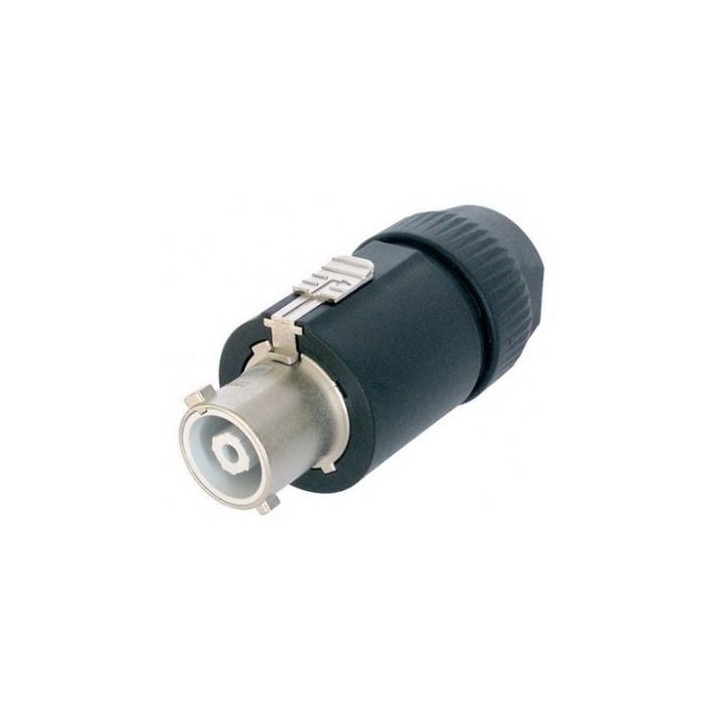

PowerCON Female 3 Pole 32 Amp NAC3FC-HC

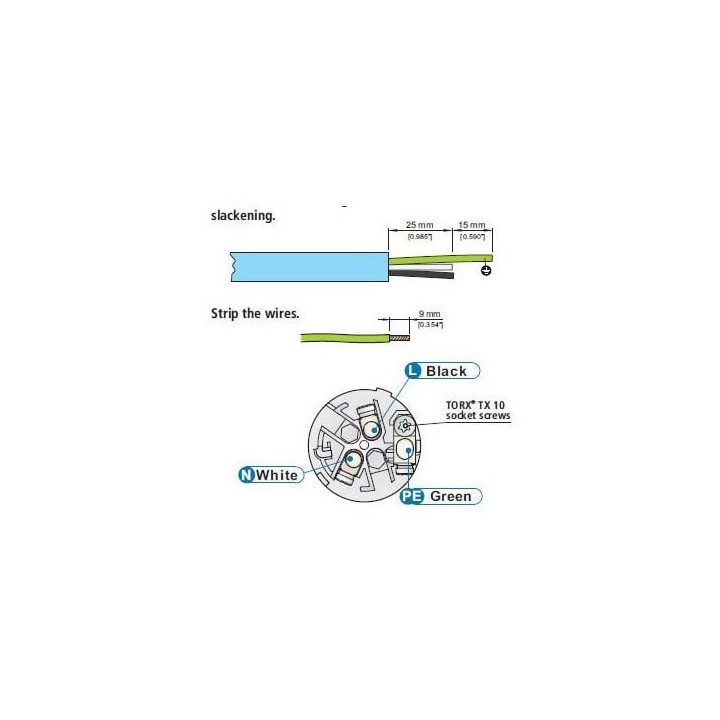

PowerCON Female 3 Pole 32 Amp The 32 Amp PowerCON is an extremely robust and reliable locking single phase AC appliance cable connector for high current capacity (32 A rated). It is conceived as a non-standardized 3-pole connection system without breaking capacity to serve the needs of high power distribution systems and supplies for professional audio and lighting equipment and installations. The connectors comprise of contacts for phase, neutral and protective earth (ground) conductors rated for currents up to 32 A and for voltages up to 250V. Technical Specifications: - 250 V ac, 32 Amp single-phase (for ambient temperatures up to 35C) - Premating contact for protective earth - Fast and easy locking system to prevent unintentional disengagement - Cable O.D. Range: 8 - 20 mm - Wiring with screw-type terminals for wires 2.5 to 6.0 mm (AWG 14 - 10) - Excellent cable handling and protection - Extremely robust and reliable - VDE, UL, Cul and JET approved - Rated current per contact: 32 A (30A for cUL) - Rated voltage: 250 V ac - Dielectric strength: 4000 V dc - Cable O.D.: 8-20 mm - Wire size: 2.5 - 6mm - Wire size: 14 - 10 AWG - Wiring: screw type terminals - Locking device: quick lock Priced per connector: available in any quantity Packing information: box quantity = 25
