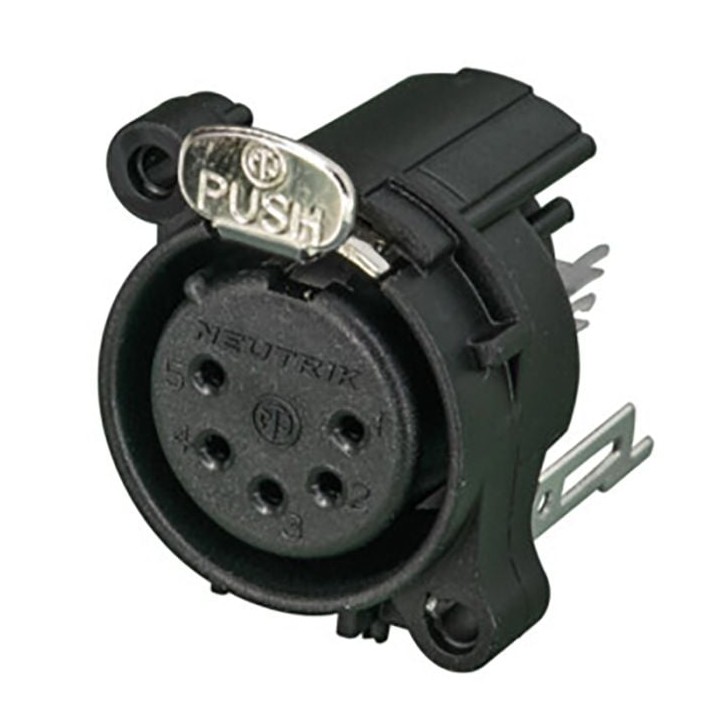

XLR 5 Pin Female Chassis A Series NC5FAV-D

XLR 5 Pin Female Chassis A SeriesNeutrik 5 pole female XLR receptacle Plastic housing Vertical PCB mount The compact XLR receptacles for audio, industrial and lighting (DMX) Coding rings ACRF in 9 different colors. Picture shows ACRF6 Blue, normal is black. The new 'State of the Art' receptacle. Smallest size / highest packing density. New designed contacts with hard gold plating and polished contact areas. TF-contacts. Latch locking or retention spring. Available in 3, 4 and 5 pole. Variety of shell and chassis grounding facilities, direct Pin 1 to chassis ground connection available. Fastening: Self-tapping PLASTITE screws with thread 2.9x1.06 and tri-rondular configuration. UL recognized component. Features & Benefits: - Smallest XLR receptacles, highest packing density - Plastic housing, steel latch lock - Polished contact areas and hard gold plating - Housing flammability UL94V-0 - Colour coding available - Male grounding: separate ground contact to mating connector shell and front panel - Female grounding: without ground / shell contact
